An exemplary outline of a hygiene zone for medium and big enterprisesExemplary outline of a hygiene zone for small enterprises
Pass through washing machine for soles with turn style cross on the exit
Description
Pass through washing machine for soles with turn style cross on the exit
Made of stainless steel, AISI 304 (1.4301). Designed for positive control of washing soles by turn style cross on the exit. Ensures passing through the equipment in one or two directions. Washing is done by two horizontal rotating brushes and injecting of washing agent and water. The machine is actuated by photocells located on its entrance and exit.
Technical data:
Clean water inlet: ½”
Water pressure: min 3 bar
Water outlet: DN 50
Electrical connection: 400V/50Hz

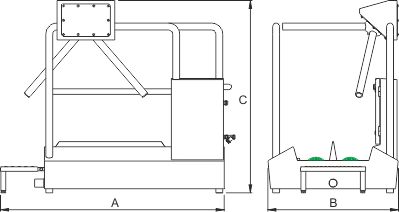

| Art. № | AxBxC (mm) |
Brushes |
Passing | Power, kW |
|---|---|---|---|---|
| 04.12.233.000 | 1425х800х1185 | 700 | in one direction | 0,65 |
| 04.12.243.000 | 1425х800х1185 | 700 | in two direction | 0,65 |
| 04.12.235.000 | 2125х950х1185 | 1400 | in one direction | 1,25 |
| 04.12.245.000 | 2125х950х1185 | 1400 | in two direction | 1,25 |
