Box gutters

15.41.110.100
Description

Made of stainless steel AISI 304 (1.4301). Can be one-sided or bilateral with length from 1000 till 6000 mm. Adjustable height of the body of the trap. A basket for coarse refuses. Straps for fixation and leveling during installation. The grating is manufactured in two variations: mesh or gridiron. Outset - DN 100 or 150, vertical or horizontal.

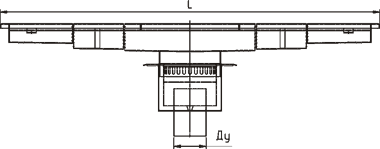

Billateral with vertical water outlet
Type
L (mm) DN Cover
gridiron
mesh
1000 100 15.42.110.100 15.42.210.100
150 15.42.410.100 15.42.510.100
1500 100 15.42.115.100 15.42.215.100
150 15.42.415.100 15.42.515.100
2000 100 15.42.120.100 15.42.220.100
150 15.42.420.100 15.42.520.100
2500 100 15.42.125.100 15.42.225.100
150 15.42.425.100 15.42.525.100
3000 100 15.42.130.100 15.42.230.100
150 15.42.430.100 15.42.530.100
3500 100 15.42.135.100 15.42.235.100
150 15.42.435.100 15.42.535.100
4000 100 15.42.140.100 15.42.240.100
150 15.42.440.100 15.42.540.100
4500 100 15.42.145.100 15.42.245.100
150 15.42.445.100 15.42.545.100
5000 100 15.42.150.100 15.42.250.100
150 15.42.450.100 15.42.550.100
5500 100 15.42.155.100 15.42.255.100
150 15.42.455.100 15.42.555.100
6000 100 15.42.160.100 15.42.260.100
150 15.42.460.100 15.42.560.100



One-sided with vertical water outlet
Тип
L (mm) DN Cover
gridiron
mesh
1000 100 15.41.110.100 15.41.210.100
150 15.41.410.100 15.41.510.100
1500 100 15.41.115.100 15.41.215.100
150 15.41.415.100 15.41.515.100
2000 100 15.41.120.100 15.41.220.100
150 15.41.420.100 15.41.520.100
2500 100 15.41.125.100 15.41.225.100
150 15.41.425.100 15.41.525.100
3000 100 15.41.130.100 15.41.230.100
150 15.41.430.100 15.41.530.100
3500 100 15.41.135.100 15.41.235.100
150 15.41.435.100 15.41.535.100
4000 100 15.41.140.100 15.41.240.100
150 15.41.440.100 15.41.540.100
4500 100 15.41.145.100 15.41.245.100
150 15.41.445.100 15.41.545.100
5000 100 15.41.150.100 15.41.250.100
150 15.41.450.100 15.41.550.100
5500 100 15.41.155.100 15.41.255.100
150 15.41.455.100 15.41.555.100
6000 100 15.41.160.100 15.41.260.100
150 15.41.460.100 15.41.560.100



Billateral with horizontal water outlet
Тип
L (mm) DN Cover
gridiron
mesh
1000 100 15.42.110.200 15.42.210.200
150 15.42.410.200 15.42.510.200
1500 100 15.42.115.200 15.42.215.200
150 15.42.415.200 15.42.515.200
2000 100 15.42.120.200 15.42.220.200
150 15.42.420.200 15.42.520.200
2500 100 15.42.125.200 15.42.225.200
150 15.42.425.200 15.42.525.200
3000 100 15.42.130.200 15.42.230.200
150 15.42.430.200 15.42.530.200
3500 100 15.42.135.200 15.42.235.200
150 15.42.435.200 15.42.535.200
4000 100 15.42.140.200 15.42.240.200
150 15.42.440.200 15.42.540.200
4500 100 15.42.145.200 15.42.245.200
150 15.42.445.200 15.42.545.200
5000 100 15.42.150.200 15.42.250.200
150 15.42.450.200 15.42.550.200
5500 100 15.42.155.200 15.42.255.200
150 15.42.455.200 15.42.555.200
6000 100 15.42.160.200 15.42.260.200
150 15.42.460.200 15.42.560.200



One-sided with horizontal water outlet
Type
L (mm) DN Cover
gridiron
mesh
1000 100 15.41.110.200 15.41.210.200
150 15.41.410.200 15.41.510.200
1500 100 15.41.115.200 15.41.215.200
150 15.41.415.200 15.41.515.200
2000 100 15.41.120.200 15.41.220.200
150 15.41.420.200 15.41.520.200
2500 100 15.41.125.200 15.41.225.200
150 15.41.425.200 15.41.525.200
3000 100 15.41.130.200 15.41.230.200
150 15.41.430.200 15.41.530.200
3500 100 15.41.135.200 15.41.235.200
150 15.41.435.200 15.41.535.200
4000 100 15.41.140.200 15.41.240.200
150 15.41.440.200 15.41.540.200
4500 100 15.41.145.200 15.41.245.200
150 15.41.445.200 15.41.545.200
5000 100 15.41.150.200 15.41.250.200
150 15.41.450.200 15.41.550.200
5500 100 15.41.155.200 15.41.255.200
150 15.41.455.200 15.41.555.200
6000 100 15.41.160.200 15.41.260.200
150 15.41.460.200 15.41.560.200
