Description

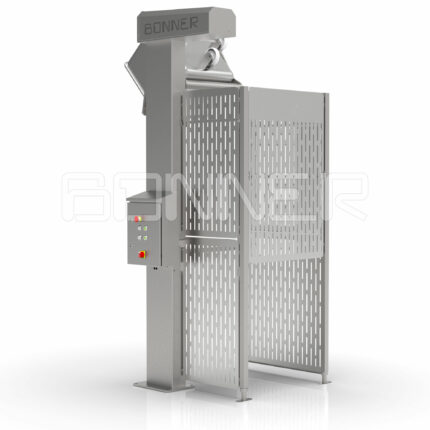

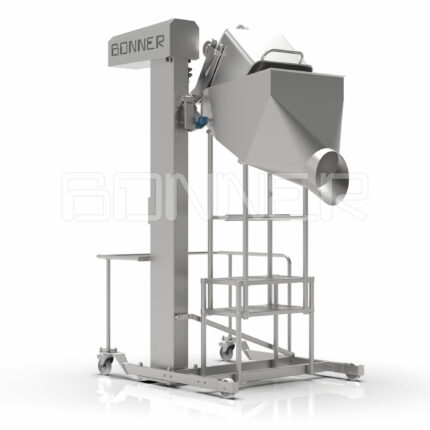

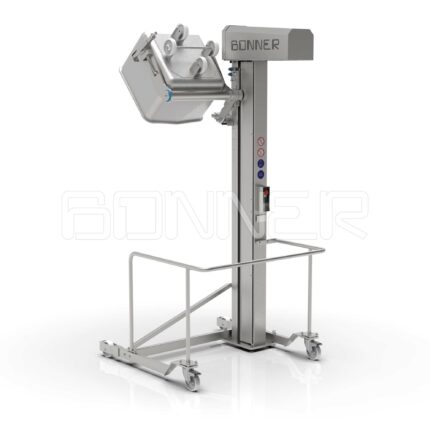

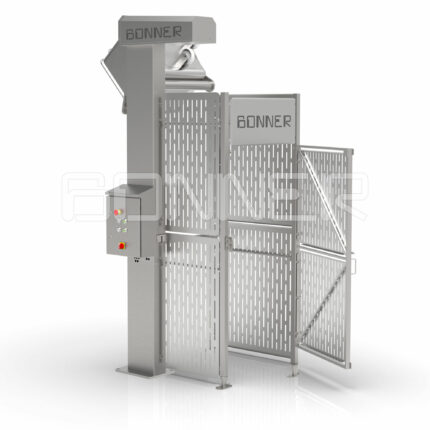

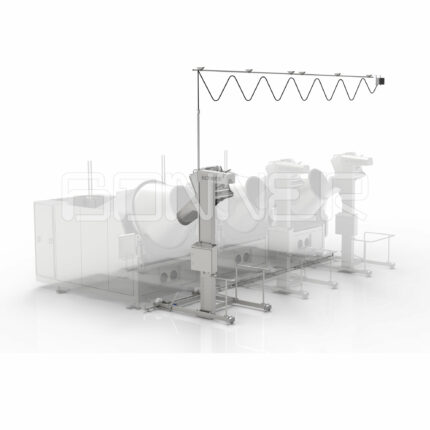

Stainless steel construction, AISI 304 (1.4301) with the exception of the turning pivot shaft. Designed for lifting and tilting of carts with capacity of 200l or 300l, according to DIN 9797. Special grippers for containers, box pallets etc. can be made on request within the limits of the maximum loading capacity of the equipment. Lifting and tilting height: 1050 ч 4050 mm. For height over 3050 mm a special fortification of the equipment column is necessary. Depending on customer’s needs, the equipment can be connected stationary to the floor of the premises or mounted to a special wheel carrier. High reliability and safety work thanks to a load lifting system with a double roller chain.
Technical data:
Max. loading capacity: 300 kg
El. connection: 400 V/50 Hz
Power installed: 0,79 kW
Lifting speed: 5 m/min
| Art.№* | AxBxC (mm) | Type | Tilt-over height (mm) |
|---|---|---|---|
| 43.21.200.000 | 985x1155x2450 | left | 1050-1550 |
| 43.22.200.000 | 985x1155x2950 | left | 1550-2050 |
| 43.23.200.000 | 985x1155x3450 | left | 2050-2550 |
| 43.24.200.000 | 985x1155x3950 | left | 2550-3050 |
| 43.25.200.000 | 985x1155x4450 | left | 3050-3550 |
| 43.26.200.000 | 985x1155x4950 | left | 3550-4050 |
| 43.21.100.000 | 985x1155x2450 | right | 1050-1550 |
| 43.22.100.000 | 985x1155x2950 | right | 1550-2050 |
| 43.23.100.000 | 985x1155x3450 | right | 2050-2550 |
| 43.24.100.000 | 985x1155x3950 | right | 2550-3050 |
| 43.25.100.000 | 985x1155x4450 | right | 3050-3550 |
| 43.26.100.000 | 985x1155x4950 | right | 3550-4050 |
| * Art. № for standard grip | |||
Standard grip:
Non standard grip:
