Description

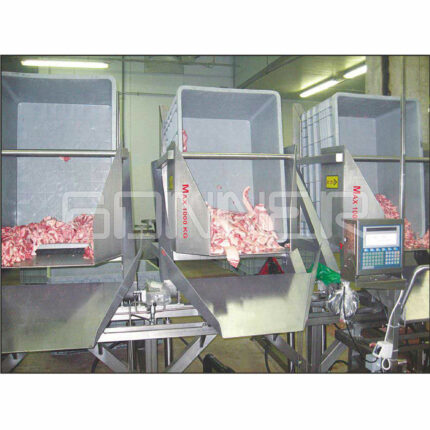

Stainless steel construction, AISI 304 (1.4301). Designed for dosage of products in standard carts 200l, according to DIN 9797. Loading of products is done in tubs or box pallets with maximum dimensions: 1200х1000х800mm, loaded and tilted over from their narrow side. Modular construction. The equipment consists of 3, 4 or 6 independently actuated hydraulic lifting devices with loading capacity of each 1000 kg. Integrated mobile electronic scales (moving on a special strip) with digital indication of the weight. Maximum weighting range – 300 kg, division – 100 gr. Possibility of entering recipes data and transferring them from the scales to a computer.
Technical data:
Max. loading per position: 1000 kg
El. connection: 400 V/50 Hz
Power installed: 1,65 kW
| Art.№ | AxBxC(H) (mm) | Loading positions |
|---|---|---|
| 03.72.100.000 | 3200x4200x1450(2850) | 3 |
| 03.72.200.000 | 3200x5500x1450(2850) | 4 |
| 03.72.300.000 | 3200x8000x1450(2850) | 6 |
