Description

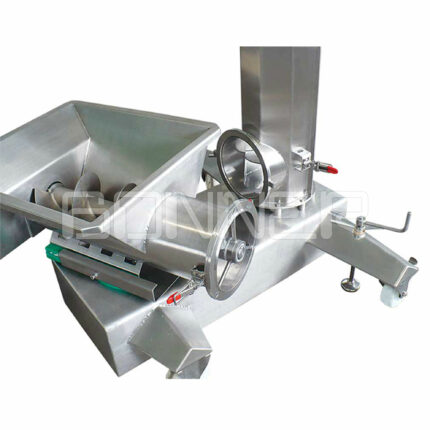

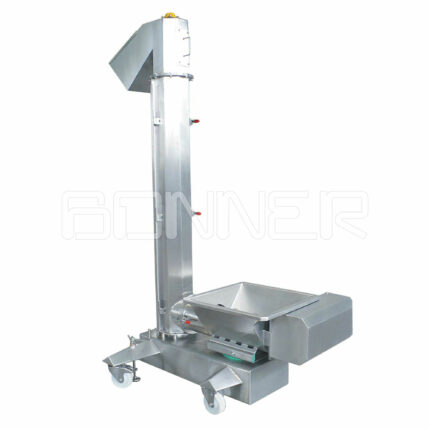

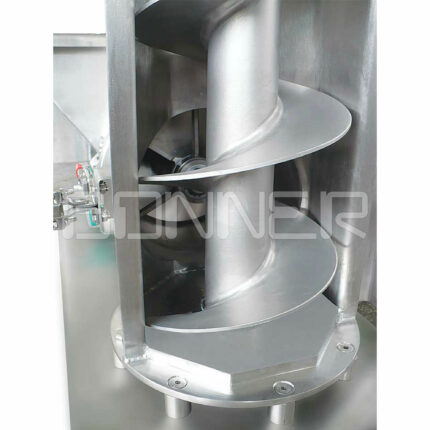

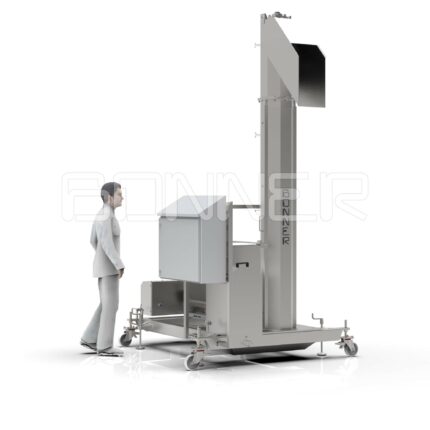

Stainless steel construction AISI 304 (1.4301). Compact design suitable for limited spaces. Designed for vertical transportation of bulk products. Transport ation is done by a horizontal, feeding and vertical augers. The construction is easy to clean, complies with hygiene and safety requirements according to EU regulations. The horizontal auger is mounted on a mobile frame for easy disassembly and cleaning. The vertical auger is cleaned through inspection covers. With possibility to be included in production lines.
Technical data:
Electrical connection: 400 V/50 Hz
Power installed: 5 kW
Capacity: up to 10 t/h
Depending on temperature and product type
Diameter of the auger: Ø 240 mm.
Loading height: 700 mm
| Art.№ | AxBxC (mm) | Height of unloading, H (mm) |
|---|---|---|
| 24.06.110.000 | 1870х1252х2365 | 1800 |
| 24.06.120.000 | 1870х1252х2765 | 2200 |
On individual request, the equipment can be executed with a loading height of 1500 … 4500 mm.
