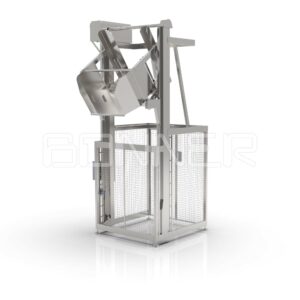

Electro-mechanical lifting and tilting device
Lifting and tilting of box pallets with dimensions 1200 х 1000 х 800 mm and gross weight up to 1000 kg.
Stainless steel construction, AISI 304 (1.4301).
Solid double-column construction for stationary installation. Designed for lifting and tilting of box pallets with dimensions 1200х1000х800 mm and gross weight up to 1000 kg.
The fork of the equipment has an additional appliance for lifting and tilting of carts with capacity 200l or 300l according to DIN 9797. Tilt-over height: from 1500 to 2400 mm.
For maximal safety during work with the equipment, the load lifting zone is equipped with a solid metal fencing with a lockable door and interlock against opening.
Technical data:
Max. loading capacity: 1000 kg
El. connection: 400 V/50 Hz
Power installed: 2,25 kW
Lifting speed: 5 m/min
| Art.№* | AxBxC (mm) | Tilt-over height (mm) |
|---|---|---|
| 03.16.203.000 | 2470х1925х3400 | 1500 |
| 03.16.303.000 | 2470х1925х3700 | 1800 |
| 03.16.403.000 | 2470х1925х4000 | 2100 |
| 03.16.503.000 | 2470х1925х4300 | 2400 |
| Tilt-over height (mm) | 1500, 1800, 2100, 2400 |
|---|
