Description

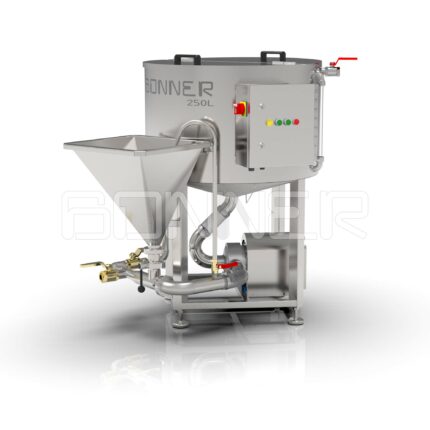

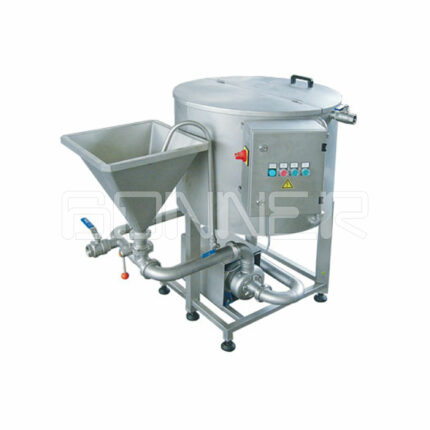

Made of stainless steel, AISI 304 (1.4301). Designed for preparation of brine. Stirring and discharging of the brine is done by a stainless centrifugal pump. Mixing of powered substance and water is done by an injector, mounted under the loading funnel. Level-measuring pipe for observing the level in the mixing hopper. Revisions cover for cleaning the hopper. Manual control.
Technical data:
Water inlet – tank fill up: 1″
Brine outlet: 1 ½”
Electrical connection: 400 V/50 Hz
| Art.№ | AxBxC (mm) | Capacity, L | Power, kW |
|---|---|---|---|
| 24.01.300.250 | 1350х900х1300 | 250 | 1,1 |
| 24.01.300.400 | 1700х1200х1300 | 400 | 1,1 |
| 24.01.300.750 | 1700х1200х1700 | 750 | 2,2 |
Buffer containers for storage of the brine are manufactured on customer’s request.
A propeller stirrer for additional stirring can be integrated in the buffer containers.
