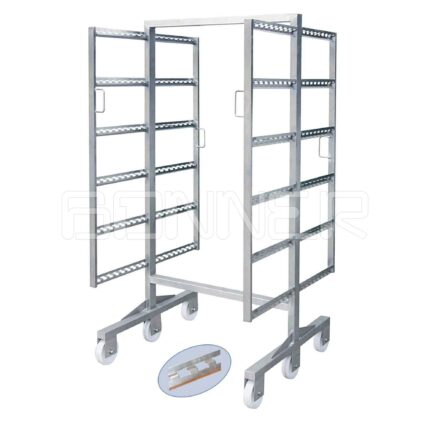

Description
Made of stainless steel, AISI 304 (1.4301).
Construction of tightly welded tubular profiles.
Punched rest for 14 smoking sticks on each level, step 67 mm.
Six polyamide wheels Ø150 mm.
Uneven height position of the wheels allows easy handling of the trolley.
Stacking: Necessary space for storing 10 empty smoking trolleys is approximately 1600х1600 mm.
| Art.№ | AxBxC (mm) | Number of levels | Length of the sticks (mm) |
|---|---|---|---|
| 02.21.413.300 | 1000x910x1900 | 4 | 900 |
| 02.21.423.300 | 1000x1010x1900 | 4 | 1000 |
| 02.21.513.300 | 1000x910x1900 | 5 | 900 |
| 02.21.523.300 | 1000x1010x1900 | 5 | 1000 |
| 02.21.613.300 | 1000x910x1900 | 6 | 900 |
| 02.21.623.300 | 1000x1010x1900 | 6 | 1000 |
| 02.21.813.300 | 1000x910x1900 | 8 | 900 |
| 02.21.823.300 | 1000x1010x1900 | 8 | 1000 |
On customer’s request the trolleys can be manufactured with different dimensions, as well as with different rests:
I – smooth rest for transporting of sheet and mesh trays:
II – embossed rests with formed bulges for sticks fixation:
III – toothed rest::
