Description

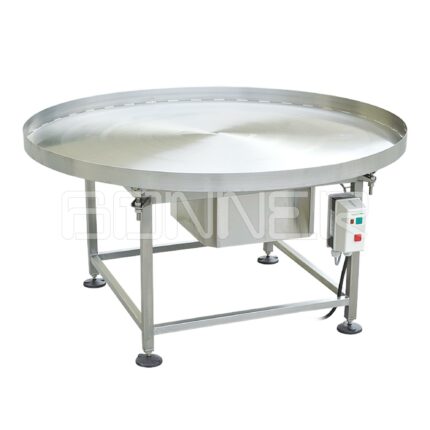

Rotating table for sorting with movable edge
Made of stainless steel AISI 304 (1.4301).
Designed for sorting and storing of packed and unpacked food products.
Manufactured with four legs with heels for height adjustment.
Broad board varieties: flat or cone shaped.
Option: mobile version with casters.
Available with other rotation speeds and speed regulation.
Technical data:
Electrical connection: 400 V/50 Hz
Power installed: 0,37 kW
Rotating speed: 2,8 min-1
Height of the broad board: H = 850±40 mm
| Art.№ | Broad board D, mm | Model | Driving |
|---|---|---|---|
| 08.41.110.000 | Ø 1500 | flat | central |
| 08.42.110.000 | Ø 1200 | flat | central |
| 08.44.110.000 | Ø 1000 | flat | central |
| 08.41.110.100 | Ø 1500 | flat | lateral * |
| 08.42.110.100 | Ø 1200 | flat | lateral * |
| 08.41.130.000 | Ø 1500 | cone shaped | central |
| 08.42.130.000 | Ø 1200 | cone shaped | central |
| 08.44.130.000 | Ø 1000 | cone shaped | central |
| * Suitable for assembly over belt conveyors. | |||
Rotating table for sorting with fixed edge
Made of stainless steel AISI 304 (1.4301).
Designed for loading and unloading of cans, jars and other cylindrical objects on belt conveying systems.
With possibility for regulating the height of the edge.
Central location of the drive.
Manufactured with four legs with heels for height adjustment.
Option: Available with other rotation speeds and speed regulation.
Technical data:
Electrical connection: 400 V/50 Hz
Power installed: 0,37 kW
Rotating speed: 2,8 min-1
Height of the broad board: H = 850±40 mm
| Art.№ | Broad board D, mm |
|---|---|
| 08.41.110.010 | Ø 1500 |
| 08.42.110.010 | Ø 1200 |
| 08.44.110.010 | Ø 1000 |
