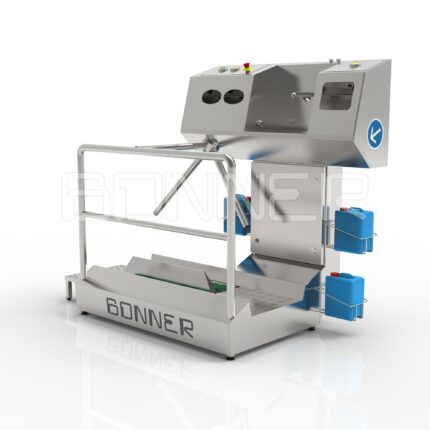

Hands disinfection unit with turn style cross and sink
Stainless steel construction, AISI 304 (1.4301), including the following elements: Contact free sink, actuated by a photocell. Hands disinfection unit: disinfection is done by spaying hands with disinfection liquid; Turn style cross: allows passing through the equipment only after a proper disinfection of the hands is performed.
Adjustable position of the hand disinfection unit:
Technical data:
Hot water inlet: ½”
Cold water inlet: ½”
Water pressure: min 3 bar
Water outlet: corrugated pipe DN 32
Electrical connection: 230 V/50 Hz
Power installed: 100 W
| Art.№ | AxBxC (mm) | Type | Passing through | Model |
|---|---|---|---|---|
| 07.712.212.000 | 1150х880х1130 | right | in one direction | wall mounting |
| 07.712.112.000 | 1150х880х1130 | left | in one direction | wall mounting |
| 07.712.211.000 | 1150х880х1130 | right | in two direction | wall mounting |
| 07.712.111.000 | 1150х880х1130 | left | in two direction | wall mounting |
| 07.711.212.000 | 1120х885х1530 | right | in one direction | free standing |
| 07.711.112.000 | 1120х885х1530 | left | in one direction | free standing |
| 07.711.211.000 | 1120х885х1530 | right | in two direction | free standing |
| 07.711.111.000 | 1120х885х1530 | left | in two direction | free standing |
| Dimensions | N/A |
|---|---|
| Model | free standing, wall mounted |
| Passing through | in one direction, in two directions |
| Type | left, right |
